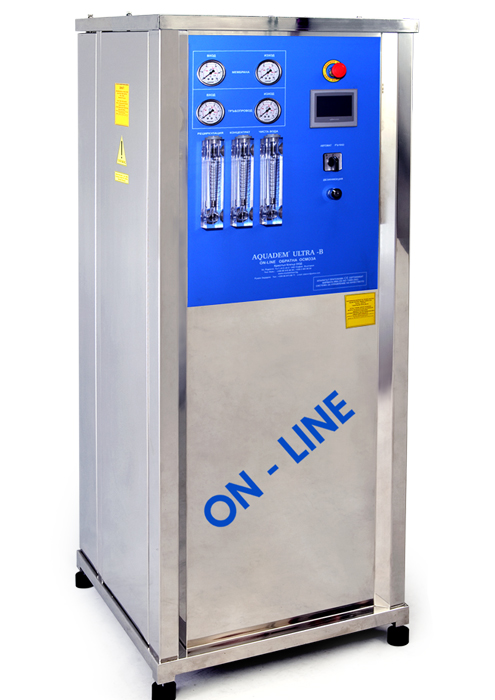

The AQUADEM ULTRA Online RO device is used as the 2nd RO device especially in the dialysis centers where the Double Pass RO water treatment system is installed.
Advantages of online system
- Operating costs are very low.
- It provides very high quality water with lower conductivity for dialysis treatment.
- The product in the RO device is not affected by the increased conductivity of the water conductor.
- Bacteria and endotoxin can not be seen in the system because the device is ONLINE and it is not from the contaminations that may arise from the storage system.
RO RO Device can be designed as PLC (Programmable Logic Control System ) controlled or standard as requested.

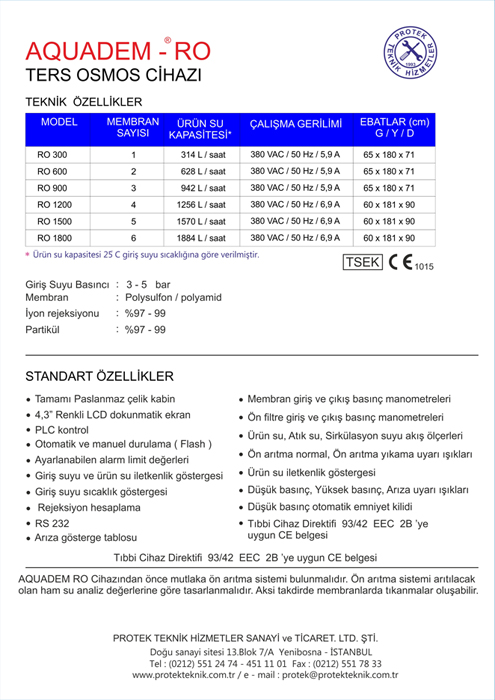

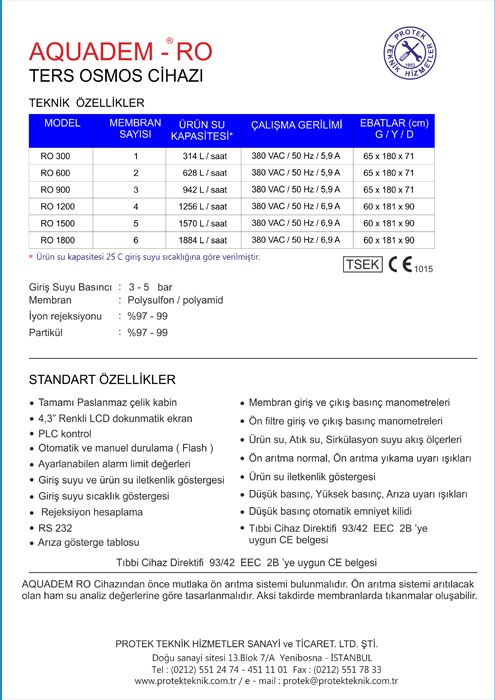

TECHNICAL SPECIFICATIONS OF AQUADEM ULTRA RO
- Design for capacity increase
- Membrane inlet and outlet pressure manometers - bar
- Line feed and return pressure manometers - bar
- Product water, Waste water, Circulating water flow meters - Liter / minute
- Warning lights
- Low Pressure automatic safety lock

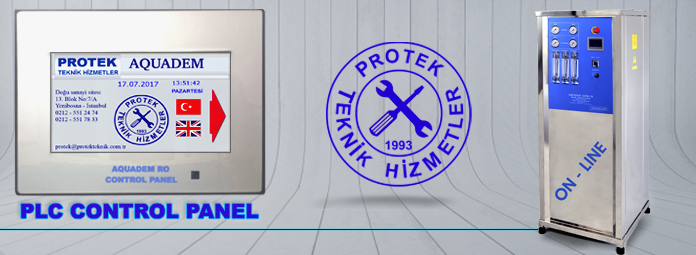

On PLC controlled devices

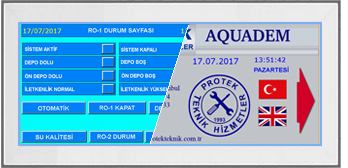

- 5.6 "color LCD display
- From the status page; System status, Storage full / empty, Pressure status, Conductivity status
- Water from the "WATER QUALITY" page: Input Water Conductivity - µS / cm, Product
- Automatic and Manual Rinse (Flush)
- Adjustable alarm limit value
- RS 232
- Fault indicator table
- Warnings and alarms: PRODUCT WATER HIGH CONDUCTIVITY, INTRODUCTION WATER HIGH CONDUCTIVITY, INTRODUCTION WATER LOW
- PRESSURE, LINE HIGH PRESSURE
- Dialysis centers produce water in accordance with European Pharmacopoeia standards, which are pure water criteria.
| MODEL |
MEMBRAN NUMBER |
PRODUCT WATER
L / Saat* |
DIMENSIONS (mm) G / Y / D |
OPERATING VOLTAGE |
| ULTRA |
4 – 8 |
1256 – 2512 |
600 x 1810 x 900 |
380 VAC / 50 Hz / 6.8 A |
* Product water capacity is given according to 25 °C inlet temperature.
The device is CE certified according to the Medical Device Directive 93/42 EEC II B. |
